产品说明
Features (六孔磁珠特長)
● The wide band choke cores mainly used in the PC boards to filters the EMI from the outsides.(寬頻的扼流線圈主要應用在主機板上防止外來的電磁波干擾)
● Ferrite core construction of low cost (低成本之鐵氧體結構)
Applications (六孔磁珠用途)
● Personal Computer and electronic products(電腦及電子產品)
Product Identification (產品識別)
FTWB - Ts (Ex. FTWB R6H - 2.5Ts)
1 2 3
1. Wide Band Chokes (寬帶抗流線圈) (YPWB)
2. Hole (孔) → R6H (六孔磁珠)
3. No. of Turns (圈數)

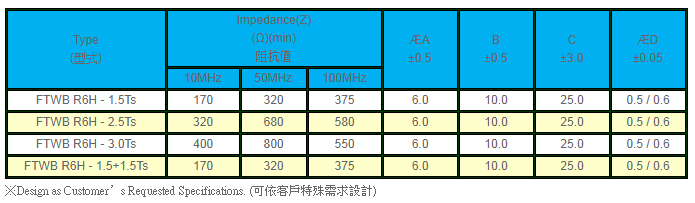

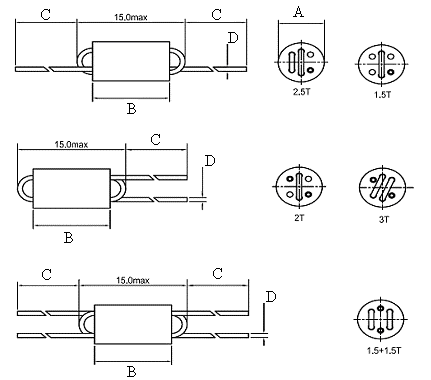

Configurations & Dimensions (六孔磁珠結構圖及規格尺寸)
