产品说明
贴片非屏蔽功率电感---DS系列
DS Unshielded Power Inductors
DS1608 / DS3308 / DS3316 / DS3340 / DS5022
Features (特長)
● Open Magnetic circuit construction (開磁路構造設計)
● Compact and thin (輕便薄小)
● Mn-Zn material core (錳鋅材之鐵芯)
● Available in various sizes. (多種尺寸可供選擇)
Applications (用途)
● Notebook, VGA card, DC/DC converter, PDA. (筆記型電腦、電腦顯示卡、直流轉換器、 PDA)
Product Identification (產品識別)
DS3308- (Ex.DS3308-100M)
1 2 3
(1) DS Unshielded Power Inductors (開放式功率電感)
(DS1608/ DS3308 / DS3316 / DS3340 / DS5022)
(2) Inductance (電感值)
(3) Tolerance (誤差值) ( K 10%, L 15%, M 20%, N 30%)

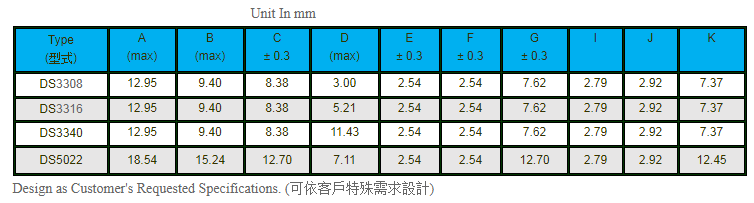

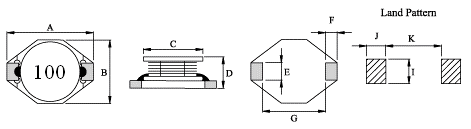

Configurations & Dimensions (結構圖及規格尺寸)
