产品说明
Features (特長)
● Coating epoxy resin that ensures the humidity resistance to be long life. (樹脂塗裝可耐環境乾燥及長壽命)
● Low Cost. (低成本)
Applications (用途)
● Electronics products (電子產品)
● Communication equipment (通訊器材)
● Computer Devices (電腦週邊設備)
● TV, VCR (電視、攝影機)
Product Identification (產品識別)
AL - (Ex.AL0204-R10M)
1 2 3 4
(1) Fixed Inductors (Axial Lead Type) (色环電感) (YPAL)
(2) Size (尺寸) (0204,0307,0410,0510)
(3) Inductance (電感值)
(4) Tolerance (誤差值) (J 5%,K 10%,M 20%)

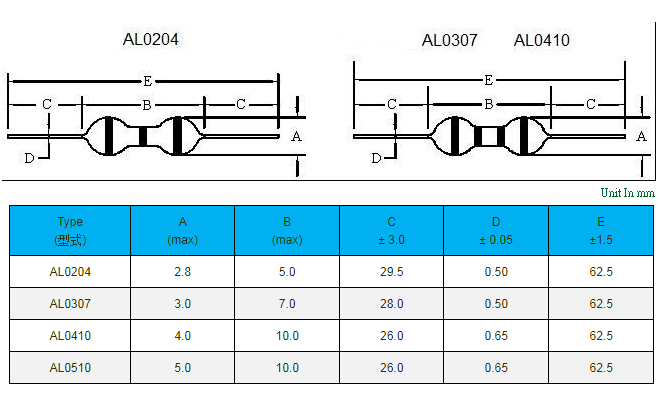

Configurations & Dimensions (結構圖及規格尺寸)
Form (型式)
(1) Normal Form & Short Form (一般型: 長帶 & 短帶)
