插件电感--PK系列
RadiaChoke Inductors
PK
Features (特長)
● Open Magnetic circuit construction (開磁路構造設計)
● Low cost and high reliability (低成本及高可靠性)
Applications (用途)
● Notebook, Inkjet printer, Copying machine, Display monitor, Cellular phone, ADSL modem, Gaming machine, Color TV, Video tape recorder, Video camera, Microwave oven, Lighting and Car electronics. (筆記型電腦、噴墨印表機、影印機、 顯示監視器、手機、寬頻數據機、 遊戲機、彩色電視、錄放影機、攝影機、 微波爐、照明設備、汽車電子產品)
Product Identification (產品識別)
PK 0406 - - (Ex. PK0406-1R0M-UL)
1 2 3 4 5
(1) Radial Choke Inductors (抗流線圈) (PK)
(2) Size (尺寸) (0406,0608,0810,0912,1012,1016)
(3) Inductance (電感值)
(4) Tolerance (誤差值) (J 5%,K 10%,L 15%,M 20%,N 30%,Y min)
(5) TUBE : UL (套管:UL)；PVC（套管PVC）

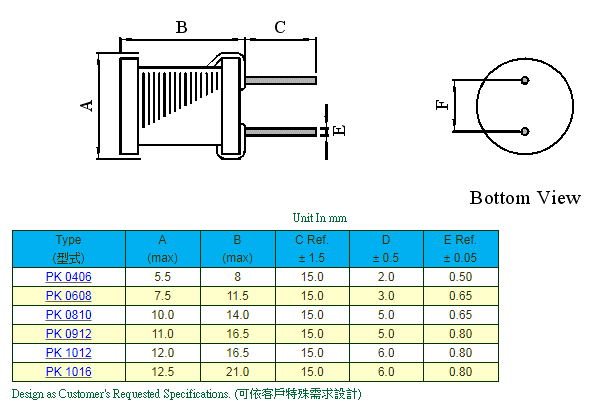

Configurations & Dimensions (結構圖及規格尺寸)
